BBlades Introduces Two New Props for Sterndrives and Large Outboards

New propellers from BBlades improve performance on air-entrapment, multistep and V-bottom designs.

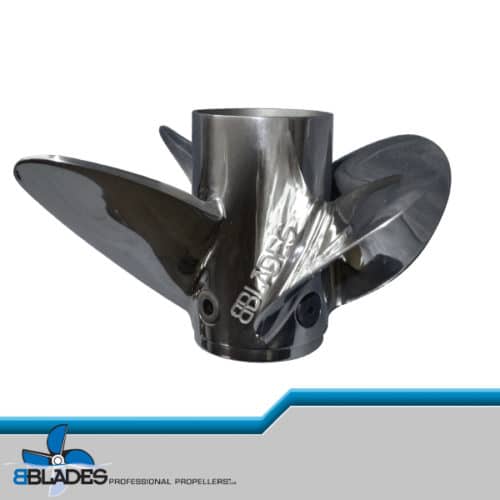

BBlades 4-Speed
BBlades 4-SpeedBBlades

BBlades has unveiled the next generation of Bravo-style sterndrive and large-outboard propeller technology: the BBlades 4-Speed for sterndrives and the 4-Speed OB/FX for outboard applications. They make it easier to improve performance on air-entrapment, multistep and V-bottom designs.

Both 4-Speed propellers are investment-cast from 15-5-grade virgin stainless steel, balanced and heat-treated. They are available in right- and left-hand rotations in 2-inch pitch increments from 24 to 34 inches. The 4-Speed sterndrive is 15.5 inches in diameter and the 4-Speed OB/FX is available in 14.75 or 15.25 inches. The larger diameters help the blades hook up in aerated water produced by stepped and air-entrapment hulls, and help with drives mounted at aggressive X-dimensions and outboards with a high installation. The blade design is key for the performance and efficiency, using variable cord lengths throughout the blade area. The cord length is the distance between the leading edge and trailing edge of the blade at any given point along the blade. Where the blade attaches to the hub, a long cord length helps get the boat on plane. Once up and running, the prop needs less surface area meeting the water to maintain top speeds. An extended exhaust tube length helps improve planing times and acceleration, but the tube isn’t flared at the end, meaning reduced drag and increased top-end speed. The 4-Speed OB/FX has an adjusted exhaust tube to allow for a little ventilation when planing.

Like other BBlades products, the 4-Speed and 4-Speed OB/FX have the adjustable Controlled Aeration Port System (CAPS). Vent holes in the propeller hub allow for additional control of the aeration around the blades. The tunable seven-eighth-inch caps are a quarter-inch larger than those found on competitive propellers and can be swapped out while the propeller is mounted.

BBlades 4-Speed OB/FX
BBlades 4-Speed OB/FXBBlades
