Tips on How to Read a Voltmeter

Although a voltmeter isn't the best gauge of your boat battery's condition, it can provide information useful to savvy boaters

A voltmeter isn’t the best gauge of your boat battery’s condition. (Pun intended.) But a voltmeter can provide information useful to savvy boaters. Here’s how to use yours.

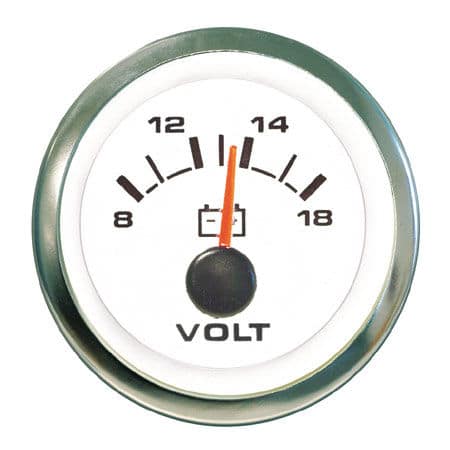

SeaStar Solutions Voltmeter

Voltmeter by SeaStar Solutions. When reading a voltmeter, remember that a difference in reading of as small as one half-volt can mean a big difference in the state of charge of your boat's batteries

SeaStar Solutions

Learning how to read a voltmeter is easy. Follow these simple tips:

1. You can use a voltmeter to measure the voltage at the battery terminals. This is called the, “open circuit voltage.” Make sure all accessories are switched off and only conduct the test after the battery has had 24 hours without any draw on it or charge put into it. If you do not wait 24 hours, surface charge on the plates will give you an erroneous reading.

A fully charged 12-volt battery shows an open circuit voltage of about 12.6 volts. The same battery is considered fully discharged when the voltage drops to 10.5 volts. A fifty-percent state of charge is around 12.2 volts.

2. You can indirectly get a bead on your battery’s condition by paying attention to the voltmeter when you are underway. With the engine running at cruise speed, the voltmeter is showing the charging voltage. This should be between about 13.2 and 13.4 volts for batteries in good shape near a full charge. If the meter reads any higher, the batteries are really drawn down, and may be “dead” or dying. If the voltmeter reads more than 14.5 volts, you may have a problem with your charging system.

Pay attention to the voltage displayed underway at your cruise speed with the minimal number of appliances energized. Write them down and get an average while your batteries and charging system are healthy. Doing so will provide you with a “target” to look for to ensure strong batteries and a robust charging system.

SIX BATTERY AND CABLE MAINTENANCE CHECKS YOU CAN DO

Remember: A difference in reading as small as one-half a volt can mean in a big difference in your boat battery's state of charge.
