Grady-White Canyon 456 Boat Test

Impressively engineered with power, extreme comfort, and serious fishability.

April 19, 2019

The Grady-White Canyon 456 isn’t the biggest mega-center-console on the sea, but it is one of the best built and equipped. It’s not unusual to see a boatbuilder stretch a line of boats, adding a longer keel and maybe spreading the beam to get more deck space between the gunwales, but the trouble with that technique is there are unforeseen consequences of simply blowing out the hull like a ­master bedroom expansion.

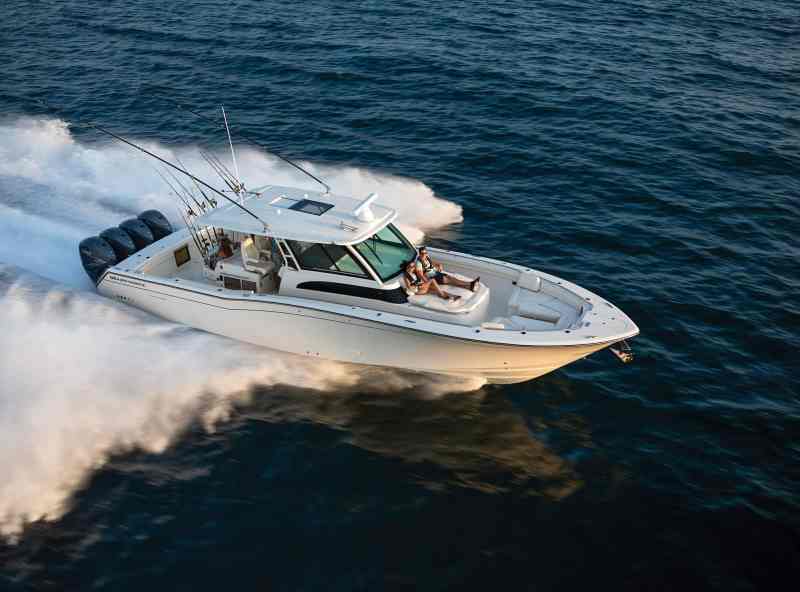

Grady-White Canyon 456 Boat Test
LOA: 45’0″ | Beam: 14’0″ | Draft (max): 2’6″ | Displacement (approx.): 28,500 lb. | Transom Deadrise: 21 degrees | Bridge Clearance: 10’5″ | Fuel Capacity: 616 gal. | Max Horsepower: 1,700 | Available Power: Quad Yamaha outboards to 425 hp each | More Information: Courtesy Grady-White

Grady-White’s plan for this boat was thoughtful and thoroughly vetted by the serious fishing and cruising experience of its design team, engineers, executives and outside consultants. And it showed on our test day, when the patented SeaV2 hull took us smoothly far offshore for swordfish. Together, they infused the deck and ­cabin ­below with extreme passenger comfort and style that is planned into the shape and cut of every bulkhead, cabinet and ceiling panel.

Grady-White Canyon 456 Boat Test

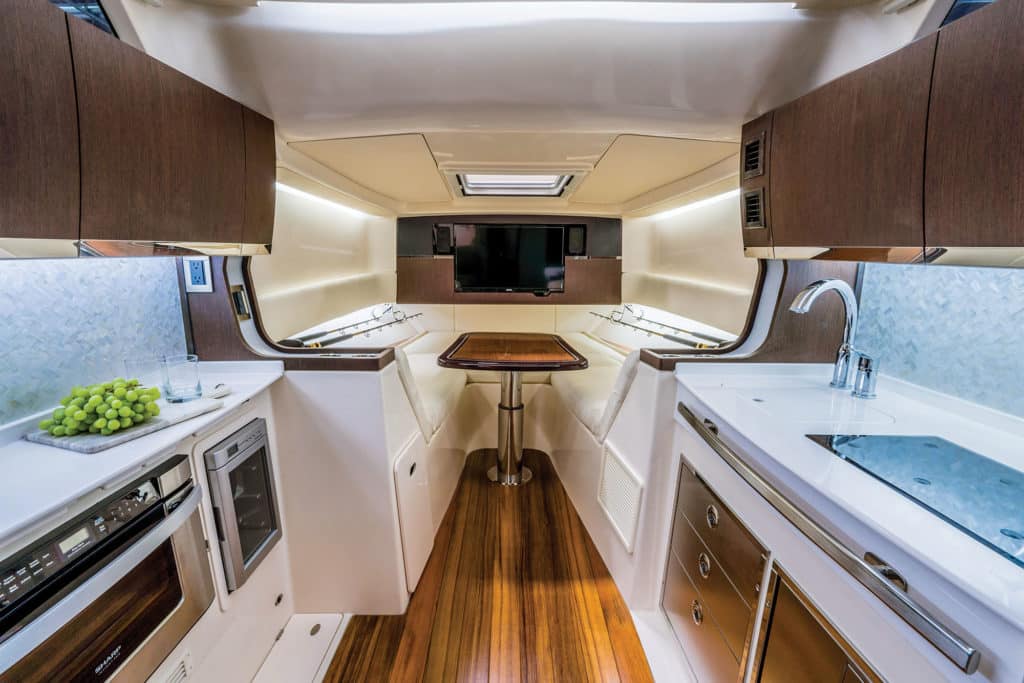

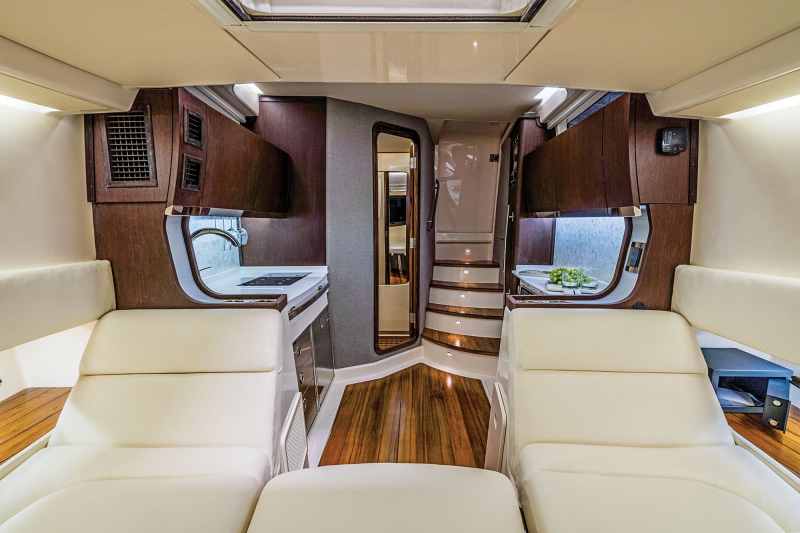

The cabin sleeps two in a large berth converted from the elegant in-laid sapele wood dinette table. Courtesy Grady-White
Grady-White Canyon 456 Boat Test
The galley is nicely appointed. Courtesy Grady-White
Grady-White Canyon 456 Boat Test

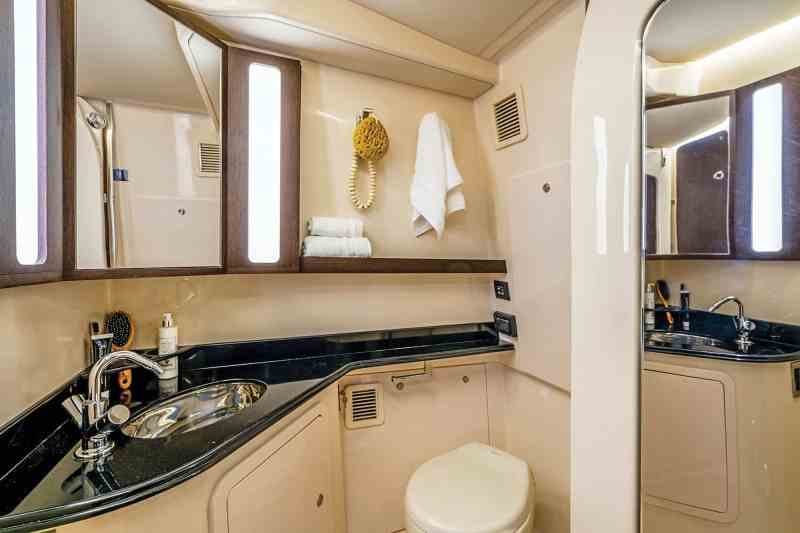

There’s an ample-size bathroom with a roomy shower. Courtesy Grady-White

This genius is most subtle yet important in the cabin below. Imagine a spacious cabin under the helm that will sleep two in a large berth converted from the elegant in-laid sapele wood dinette table. A space like that must be about 9 feet wide and built to support cabinetry without head-cracking overhead beams while ­retaining the ability to hold everything firmly in place as the boat speeds through seas at up to 58 mph. Grady-White’s design employs molded-in bulkheads and supports for galley, head and berth structures that also stiffen the cabin and the hull. Overhead, beams are concave, stiffening the ceiling while providing channels for the soft, recessed LED lighting. The entire design is so natural that you might describe it as organic.


After reviewing the generous galley and ample-size bathroom with a roomy shower (that has clever vertical rod-holder storage built in), our next stop was the helm station. There, three 17-inch Garmin displays are each capable of providing chart plotting, sonar imaging, engine and systems data, and C-Zone digital switching to coordinate the AC/DC systems. For the most used electrical mechanisms like navigation lights and bilge pumps, there are tactile on/off buttons too.

Grady-White Canyon 456 Boat Test

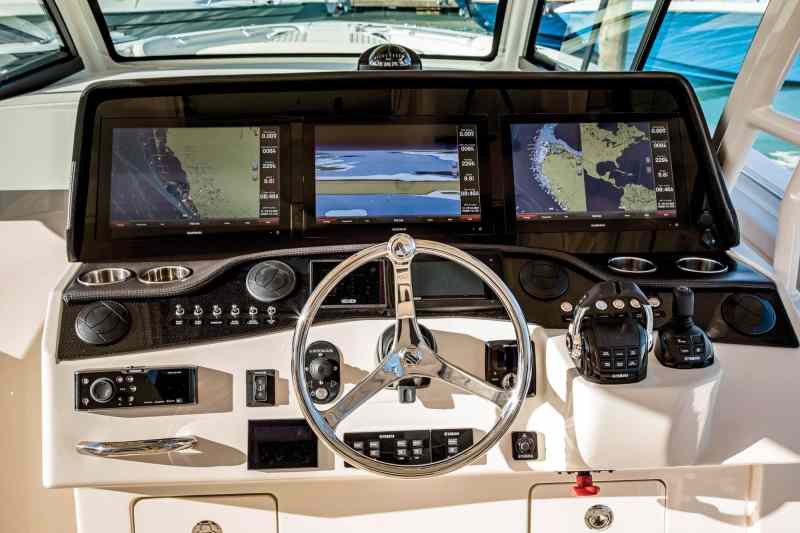

Three 17-inch Garmin screens display a wealth of information. Courtesy Grady-White

There is Yamaha’s Helm Master joystick control as well, and the steering is buttery-smooth thanks to a new first from Yamaha: electronic steering. Turning the helm offers digital input to the hydraulic steering mechanisms, and magnetic feedback gives the skipper comfortable resistance to turn the four 425 hp engines smoothly with control, precise enough that this 45-foot vessel handles like a Lexus. Given the aggressive nature of the propulsion system behind the 456, this proves critical. Further, as we deep-dropped swordfish baits 1,500 feet, the Helm Master system kept us on station with Yamaha’s Drift Point.

Grady-White Canyon 456 Boat Test

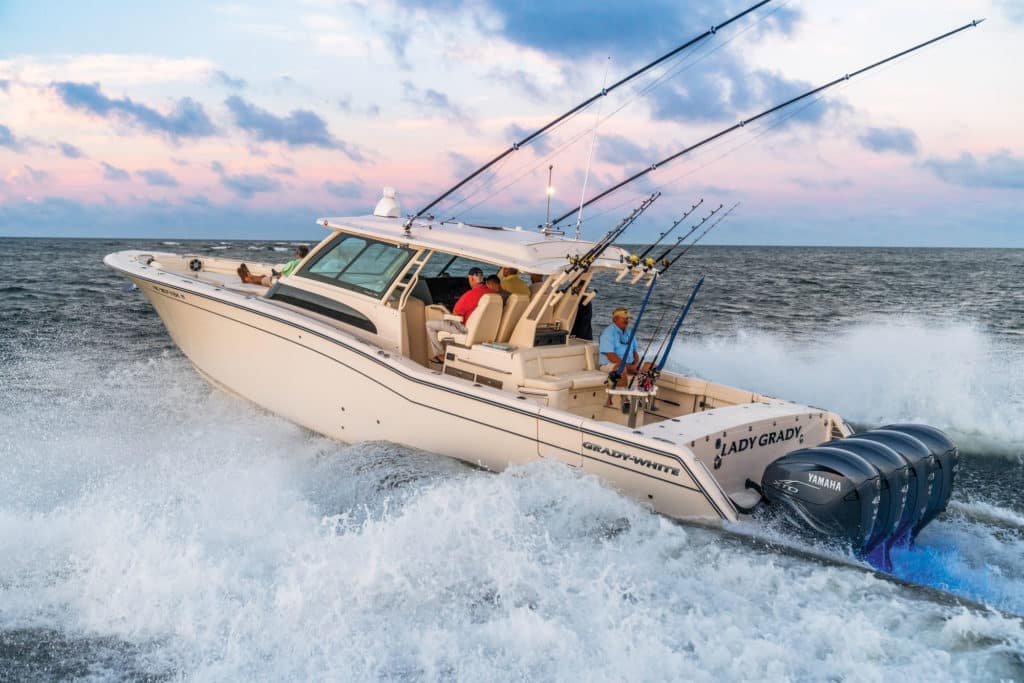

The Canyon 456 blends performance with plush amenities. Courtesy Grady-White

Four electronically controlled contoured bucket seats installed on a solid-fiberglass leaning-post structure are separated by foldaway armrests. Each have flip-up bolsters, and beneath the seats are fold-down footrests — another clever design point that lets each helmsman decide whether to sit or stand independently of the others. Because the crew capacity on the Canyon 456 is high, so is the cooler capacity with an electric refrigerator on the starboard-side of the mezzanine seating and a refrigerated ice box on the transom, flanked by two livewells. There’s a surprise hideaway electric grill above the starboard fridge.

Grady-White Canyon 456 Boat Test

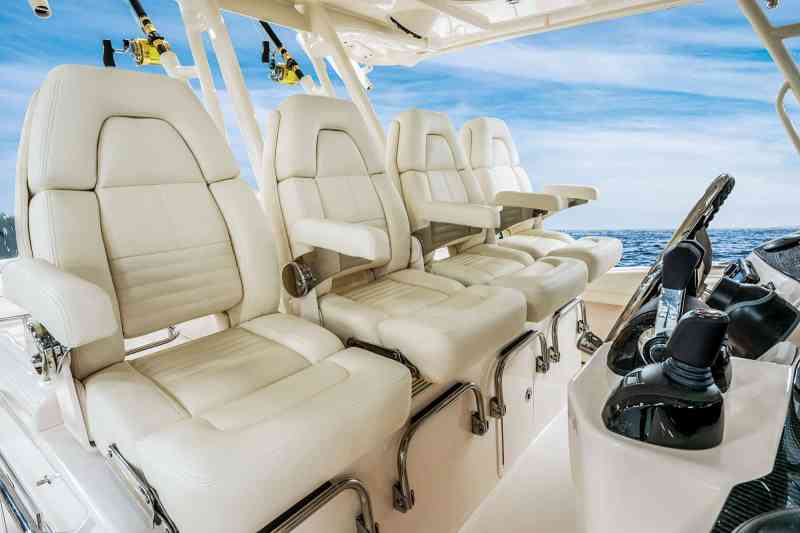

Each bucket seat has flip-up bolsters, and beneath the seats are fold-down footrests Courtesy Grady-White

Grady’s AV2 hardtop design is also organic in nature, with curved, tempered glass and power sliding windows nested in its superstructure, and an electrically extending overhead shade to cover the cockpit aft.

Aft-facing seats behind the helm seats can comfortably accommodate three passengers, and tackle storage beneath the seats keep gear organized. The optional rod-storage station in the center of the cockpit held six rods, and with those we lost count of the total rod storage when we hit 50 between the gunwales, hardtop, and lockable stowage under the gunwales and below deck to complement the array.

Read Next: Five of the Biggest Center Consoles Ever Built


Shoppers hunting for direct comparisons will find a fleet of 40-plus-foot-long center-consoles on the market, but we found none that match the Grady in length, beam and standard features. Everglades’ narrower 435 ($1,085,715 with quad ­Yamaha 425s) makes Grady’s standard teak treatment and refrigerated compartments optional. The HCB Siesta 42 breaks a cool $1 million with quad 425s too, but it is 2 feet narrower and 3 feet shorter than the Grady.

Grady-White Canyon 456 Boat Test

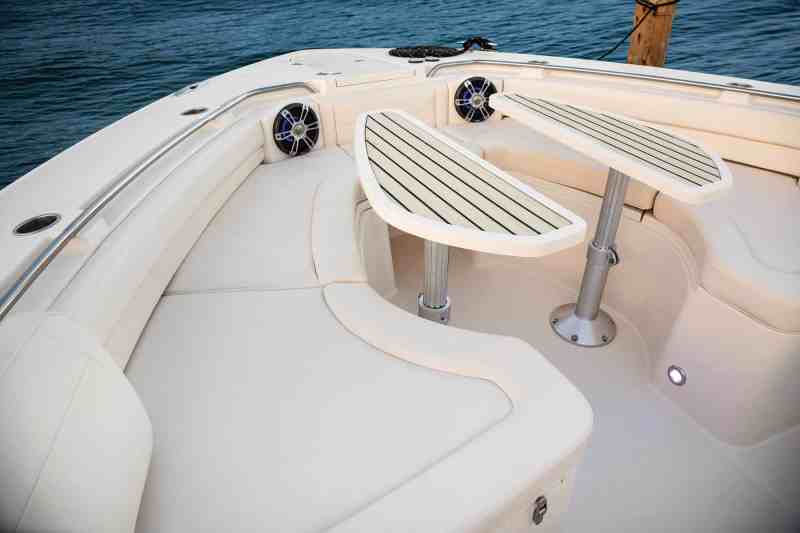

Cocktail tables are split with a walkway beneath. Courtesy Grady-White

The coup de gras in the anglers’ cockpit on the Canyon would have to be the 24-inch Garmin on the transom — centered facing the crew, offering them a clear view of what the captain sees on the command deck.

Grady-White’s engineers kept the sun seekers in mind too, adding a large forward lounge atop the cabin’s ceiling, and wraparound lounges surround the flared gunwales to the forepeak. Cocktail tables are split with a walkway beneath to give crew access to the windlass, if needed.


You can go bigger if you want a longer center-console, but you’d be hard-pressed to get a bolder, more capable center-console than the Canyon 456.

Grady-White Canyon 456 Boat Test

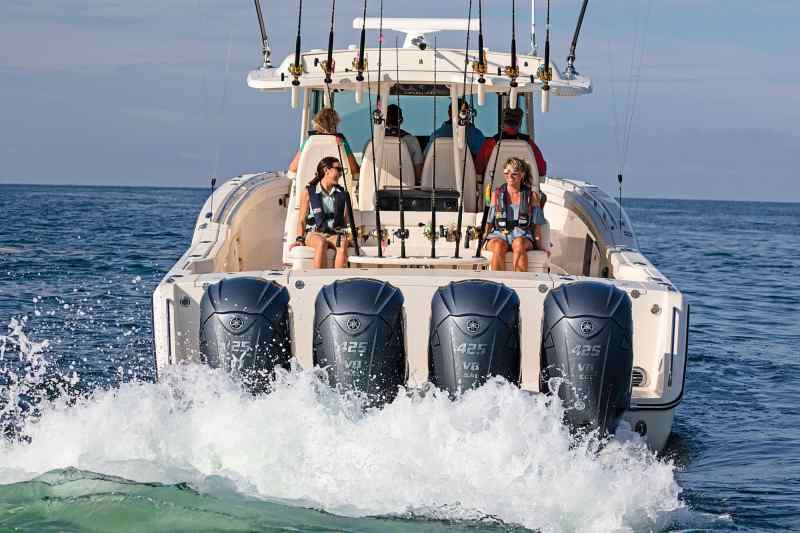

The Canyon 456 provides a smooth ride. Courtesy Grady-White

High Points

  • Seakeeper 6 and ZipWake dynamic trim control are standard for keeping the ride smooth and the crew comfortable.
  • Both port and starboard gunwale doors offer convenient choices aboard.
  • Nested in the port and starboard berths are Grady’s patent-pending sapele wood rod-storage slides holding four rods.

Low Points

  • Be sure to remove rods from the hardtop’s rocket launchers before deploying the power sunshade.
  • Stepping up to the helm deck improves the view but can cause you to stub a toe.

Price: $1,400,000 (with test power)

Available Power: Outboard

Grady-White Canyon 456 Boat Test

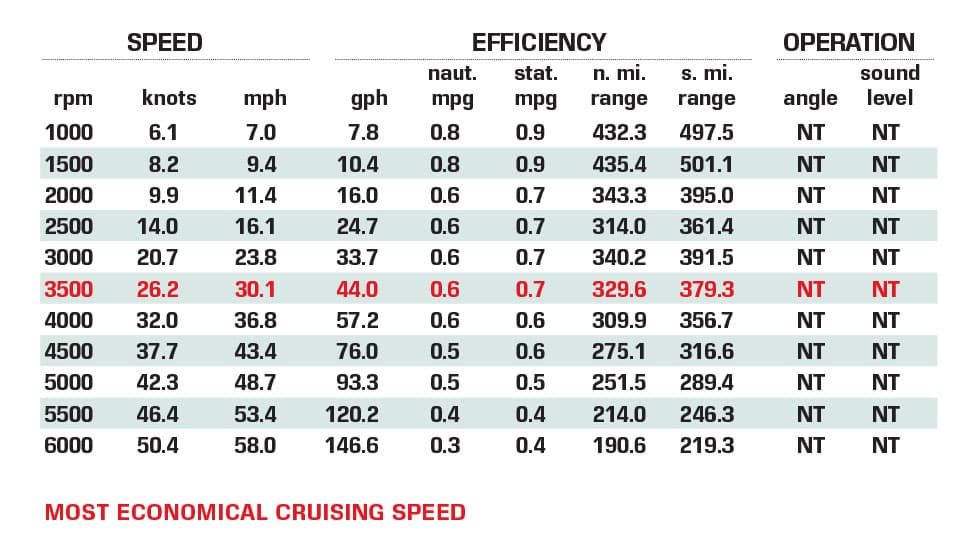

Grady-White Canyon 456 Certified Test Result Boating Magazine

How We Tested
Engine: Quad 425 hp XTO Offshore Yamaha V-8 outboards
Drive/Prop: XTO OS 16 3/8″ x 21″
Gear Ratio: 1.79:1
Fuel Load: 420 gal.
Water on Board: 0 gal.
Crew Weight: 500 lb

Grady-White Boats – Greenville, North Carolina;
