How to Change Sterndrive and Outboard Gearcase Lubricant

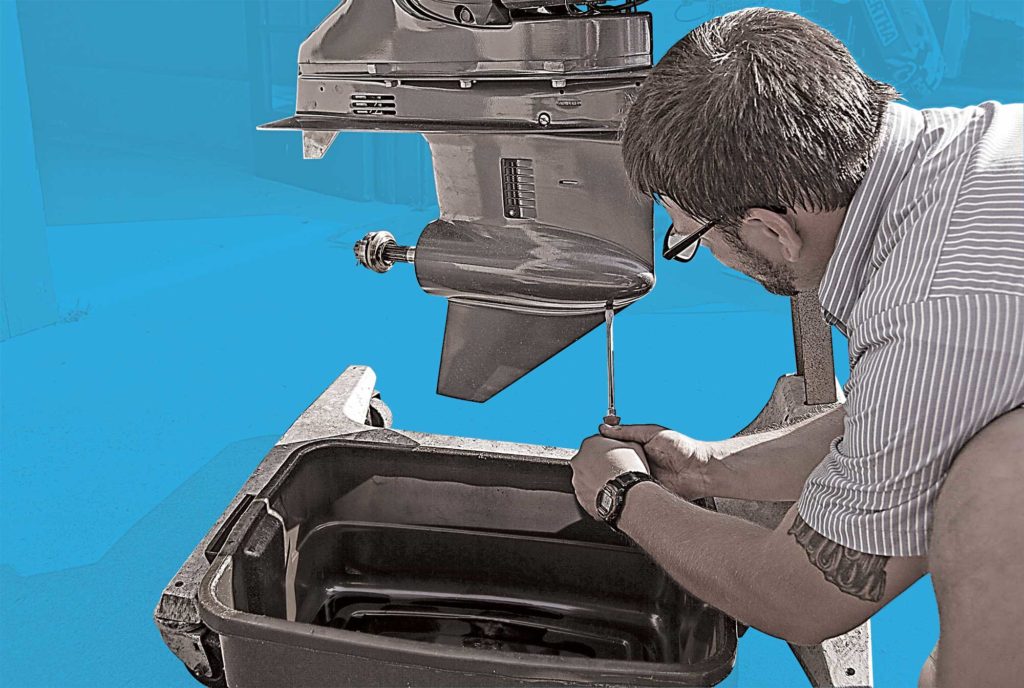

Master this task and do it at least once a year. John Tiger

Every 100 hours, or at least once per year, you need to drain and refill the gear-case lubricant, aka lower unit. Between changes you can quickly pull and eyeball the magnetized drain plug, looking for water and substantial metal shavings. If you discover either of these, you should replace the lube — then see a dealer for service.

How to Change Sterndrive and Outboard Gearcase Lubricant

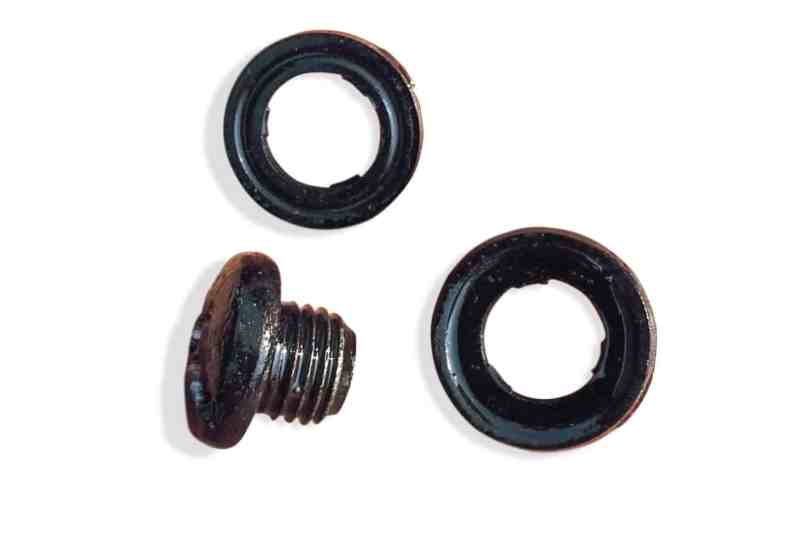

Check the magnetic drain screw for metal shavings and always use new gaskets. John Tiger

The Right Stuff

Check with your engine manual for the correct type and quantity of lubricant for your engine. There are different specs and weights for gear-case lubricants.

Go With Flow

Run the engine for a few minutes on a flusher to warm up the lube, particularly if it is cold outside. A heat gun, hair dryer or halogen work lamp applied judiciously will also warm up the lube quickly so it will flow well.

Advertisement

Neat and Tidy

Make sure the drain pan is positioned under the lower drain screw so lubricant won’t splash out onto the ground. A makeshift pan, made by cutting the side out of a gallon jug of motor oil or antifreeze, works well and even has a spout for pouring off the used oil.

How to Change Sterndrive and Outboard Gearcase Lubricant

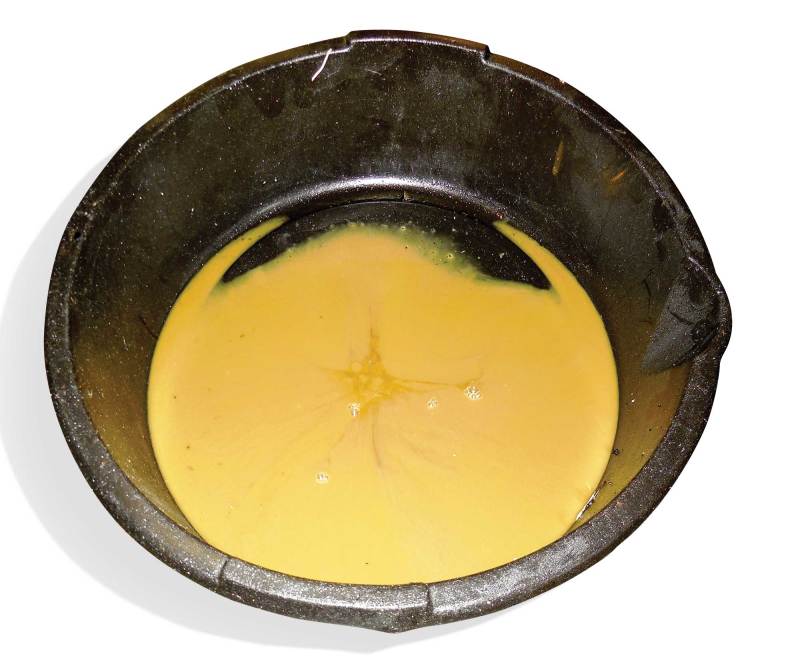

If your gear lube is this color, water has gotten into your gear case. Head to a dealer or mechanic. John Tiger

Fill ‘er Up!

Remove the vent (top screw) and then remove the drain (bottom screw). It’s important to use a correctly sized (big) screwdriver to avoid stripping the head of the tightly torqued screws. Once they are out, be patient waiting for the oil to drain .

Be Quick, Now!

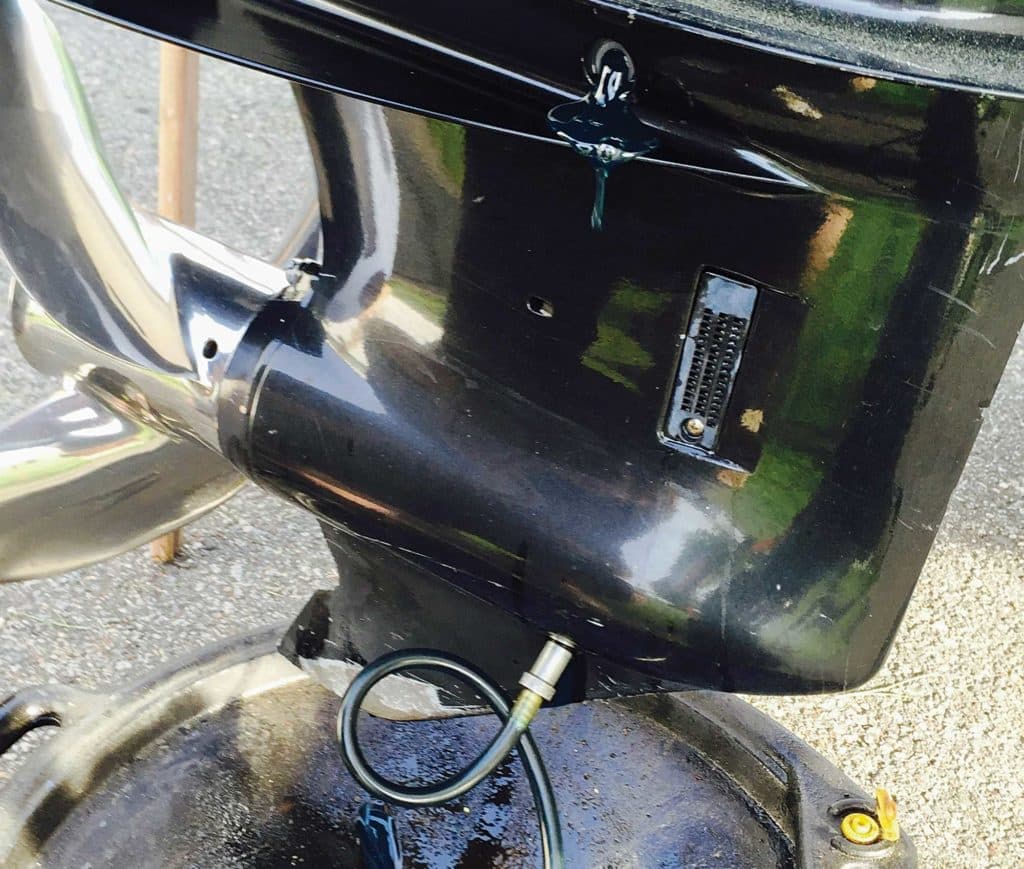

Insert the lube spout into the lower (drain) hole and fill. When lube oozes out the vent (top) hole, you know it is full. Replace the vent screw while keeping the spout in place. Quickly replace the drain screw.

Advertisement
How to Change Sterndrive and Outboard Gearcase Lubricant
Filling from the drain may seem counterintuitive, but that is how it is done. John Tiger

New, New, New

Use new gaskets when reinserting the drain/fill and vent screws. These gaskets are rigid, and it may prove helpful to screw them on by gripping them gently but firmly with pliers.

Patience

Air bubbles can form if you try to fill too quickly, which may starve the upper drive-shaft bearing of lubricant. Spin the prop a bit while filling to help expel the air pocket. Once oil oozes from the vent the first time, wait a few minutes, then pump some more in.

Quick Tip: While you’re changing the lube, remove the propeller and check for fishing-line snarls behind the thrust washer; grease the prop shaft and reinstall the prop.
