Mercury Racing Performance Active Trim

Performance Active Trim maximizes performance and boat handling at speeds up to 50 mph.

Mercury Active Trim

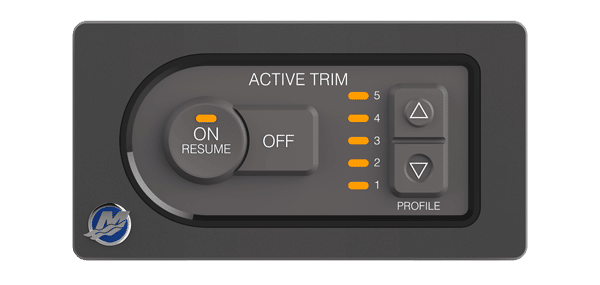

This in-dash display tells the operator when Performance Active Trim is engaged.Mercury Marine

One of the biggest announcements from Mercury Racing at the show was the introduction of Performance Active Trim.

Performance Active Trim was designed specifically for use with Mercury Racing outboards and sterndrives equipped with SmartCraft Digital Throttle & Shift (DTS) that run in a partially surfaced application. The hands-free system automatically adjusts trim angle for changes in operating conditions to maximize performance and boat handling at speeds up to 50 mph.

Mercury Active Trim

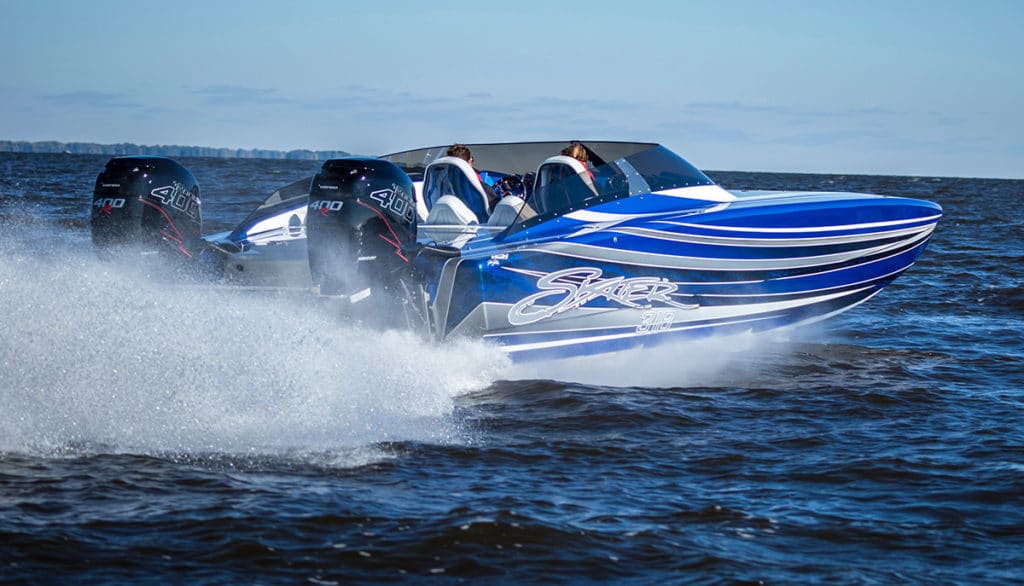

Performance Active Trim works on boat speed for catamarans, like this Skater 318 equipped with Mercury Racing 400R outboards with Digital Throttle & Shift.Mercury Marine

The key to Performance Active Trim is its patented GPS-based control system that uses boat speed as the primary input to trim the vessel. By comparison, competitive systems use engine rpm to adjust trim angle. Using speed instead of engine rpm ensures that the vessel is always trimmed at the optimal setting, according to Mercury Racing.

At speeds above 50 mph, the system returns to manual trim to give the operator full control at high speeds. When speeds drop below 50 mph, the automatic system will resume control. Personal Active Trim provides five selectable trim profiles that let the operator personalize the system to his or her driving style and compensate for changes in boat load, operator preference and weather conditions. The Performance Active Trim profiles were designed to accommodate the sensitive trim range of surfacing outboard gear cases and sterndrives. Trim speed and range were designed exclusively for surfacing V-bottom and catamaran applications.

Mercury Active Trim
At speeds above 50 mph, Performance Active Trim disengages so the operator is in full control.Mercury Marine
