Converting to an Electronic Digital-Switching System

Converting from conventional DC electric switches to an electronic digital-switching system allows for touchscreen integration.

December 5, 2016
Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on facebook
Share on twitter
Share on pinterest
Share on email

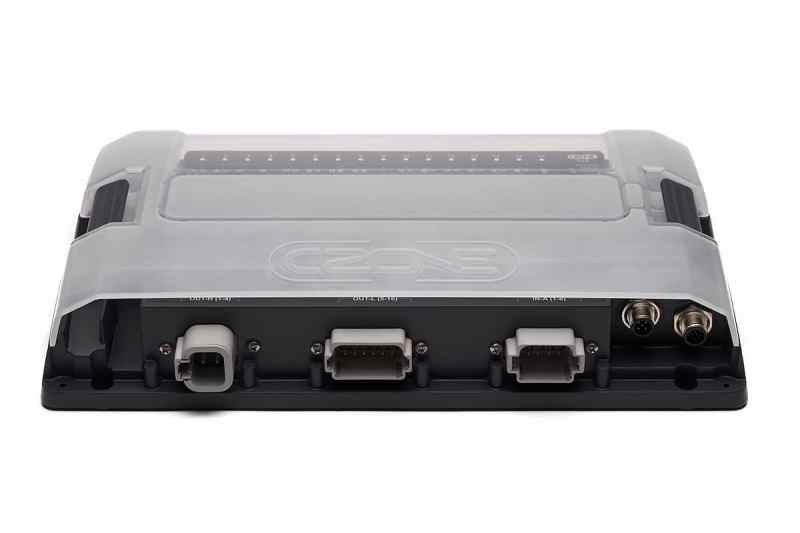

Electronic Digital-Switching Conversion
Electronic Digital-Switching Conversion BEP

Converting a boat from conventional DC electric switches to an electronic digital-switching system operating on an NMEA 2000 network includes the advantage of calling up virtual buttons on one or more compatible touchscreen multifunction ­displays, giving you the option of eliminating a switch panel altogether.

Geared toward small- to medium-size boats, BEP Marine’s CZone Combination Output Interface (COI) streamlines the conversion to digital switching, allowing you to do so with just one module. With an overall 150-amp rating, the compact 30-channel unit replaces as many as five separate digital-switching modules, making it a more cost-effective solution for digital switching. It can also serve as a building block for systems on larger boats.

The COI features waterproof Deutsch connectors and has an IPx5 water-resistance rating. It has 12 low-current (10-amp) switched outputs, four high-current (25-amp) outputs, eight analog inputs and six digital-switch inputs. A USB port allows configurations to be loaded by the owner with a USB stick at the touch of a button.

Advertisement

The CZone module seamlessly integrates with MFDs from Furuno, Garmin, Lowrance and Simrad. Additionally, you can install a BEP push-button panel that offers the look and comforting feel of conventional switches; plus, it allows for instant access to key functions versus scrolling through menus to get to the switching mode on your MFD. It costs $1,675 (MSRP); visit bepmarine.com.
