Installing an Adjustable Pedestal Seating System for a Boat

Pedestal seating avails the helmsman of height adjustability and comfort options while driving a boat.

April 27, 2020
Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on facebook
Share on twitter
Share on pinterest
Share on email

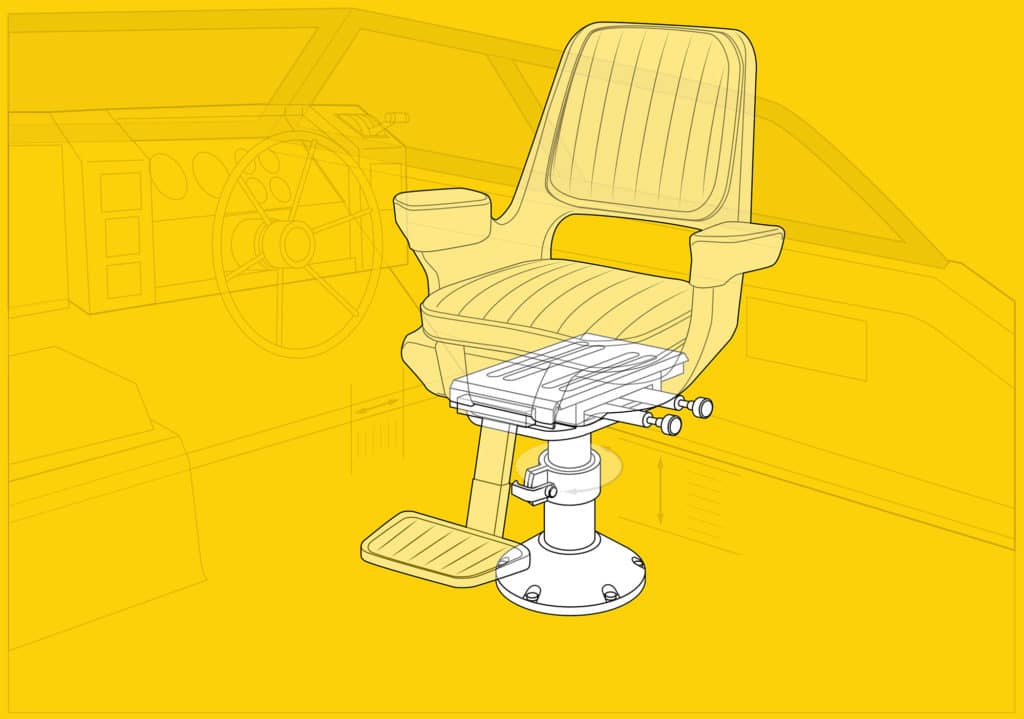

Installing an adjustable pedestal seating system
Pedestal seating offers a wider range of features than any other type of boat seating. Tim Barker

Pedestal helm-seating systems offer a wider range of features than any other type of boat seating, including the ability to swivel as well as adjust the height (on certain models) to suit the helmsman. You can add a footrest and seat bases that slide fore and aft, as well as the type of helm seat that suits your taste and budget.

These seating systems are available from a number of brands, including Garelick, Todd and Wise. For this project, we chose the Garelick EEz-In full-featured, top-of-the-line Commander II 4.0 model 78325 pedestal system, which features a 4-inch-diameter pedestal, 12-inch-diameter base, and anodized aluminum finish for corrosion protection, and adjusts in height from 211/8 inches to 251/8 inches using a gas-rise lift system. It also includes a seat base that swivels and has sliding adjustability. The Commander system includes a footrest as well.

Read Next: Three Seating Options For Your Boat

Advertisement

All components meet or exceed the requirements recommended by the American Boat and Yacht Council for static load, and lateral, vertical and horizontal impact, according to Garelick. Here’s how to install this type of pedestal seat.

Skill Level: 2 of 5

Finish Time: Approx. 3 hours

Advertisement

Tools and Supplies

• Garelick Commander II 4.0 model 78325 pedestal system/seat base/footrest ($1,352.95, starmarinedepot.com)

• Garelick model 4885015 deluxe helm chair ($1,214.95, starmarinedepot.com)

Advertisement

• Measuring tape

• Marker

• Power drill and bit set

Advertisement

• Six 1/4-20 stainless-steel oval-head bolts, fender washers and nyloc nuts

• 3/8-inch 12-inch-square aluminum plate to fashion backing plate

• 3M Marine Grade Silicone Sealant ($24.99/10-ounce cartridge, westmarine.com)

• Phillips screwdriver

• Socket or box wrench set

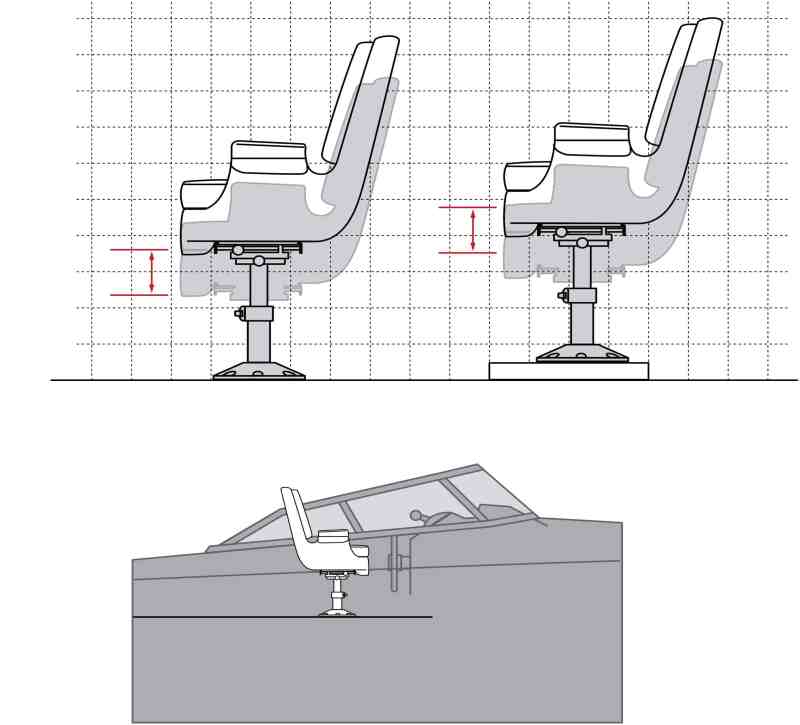

Determine seat height

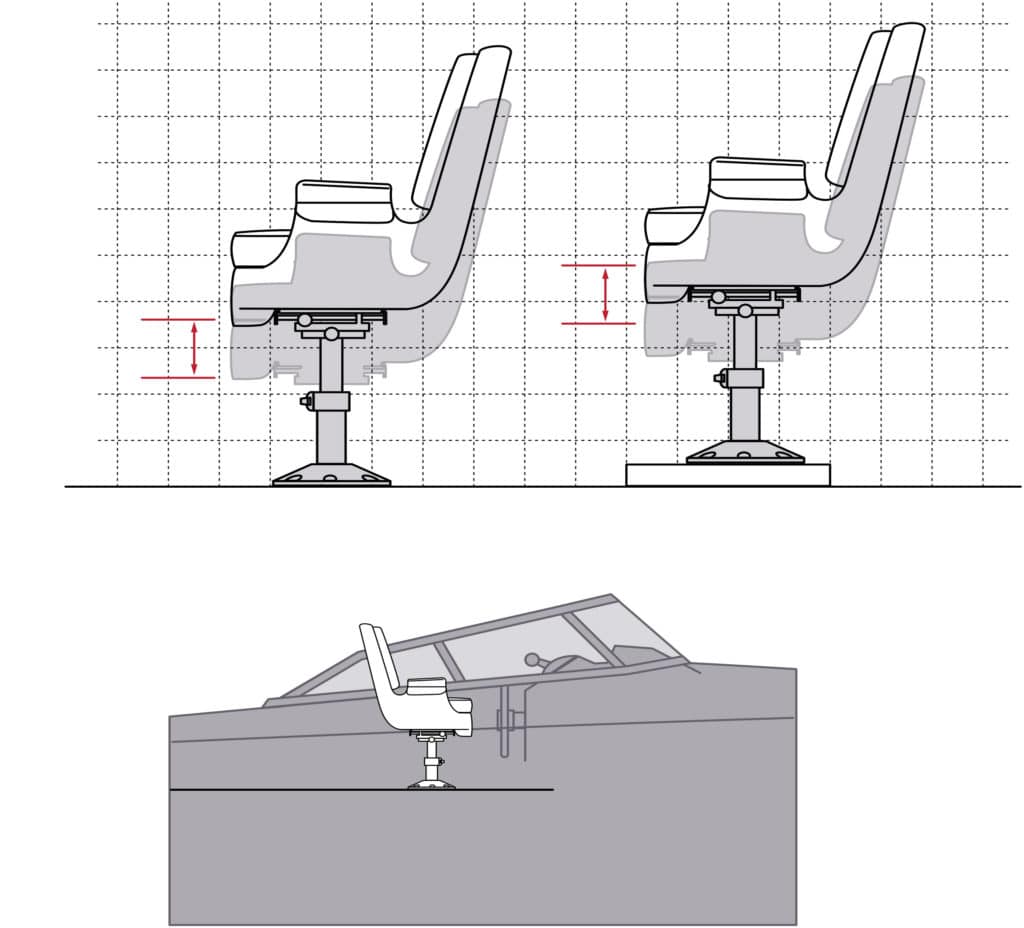

Determine Height Tim Barker

While the pedestal system we chose adjusts from 21 1/8 to 25 1/8 inches in height, your helm-seating situation and personal height might require a taller or shorter pedestal. The Garelick EEz-In Commander II 4.0 is also available in a shorter model that adjusts from 14 3/8 inches to 18 3/8 inches. If replacing an existing seat, use that height as the starting point. Remember that the seat you choose will add height beyond the pedestal itself (see next step).

Tip: If the available models are not tall enough to suit your helm, add a 3- to 4-inch hardwood base to the helm deck to serve as a riser.

Choose the right pedestal chair

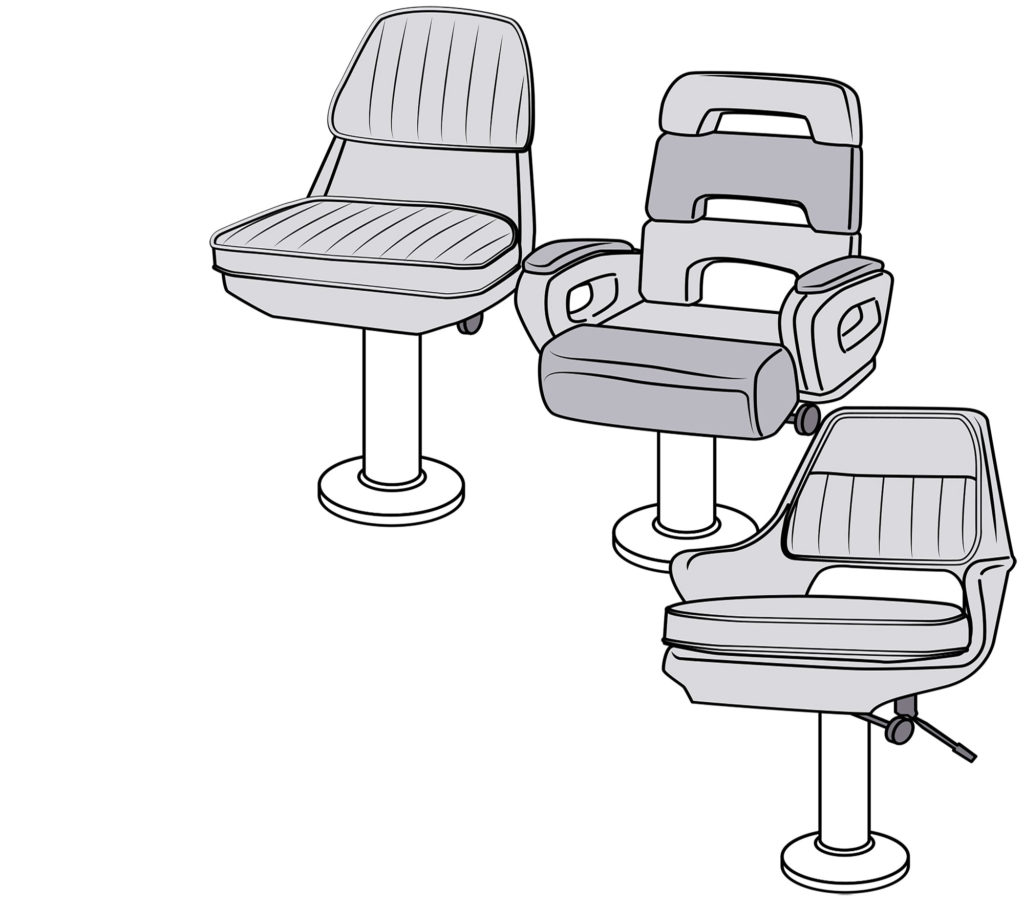

Select the Chair Tim Barker

Choose a chair that provides the comfort you desire. Garelick offers a wide range of pedestal chairs ranging from spartan-like folding seats to luxurious models with richly padded upholstery, and features such as armrests and flip-up bolsters that serve as leaning posts. Seat bases are universal among many brands, and if you don’t find a Garelick chair to your liking, check out offerings from Todd, Wise and others. We chose the Garelick model 4885015 deluxe helm chair.

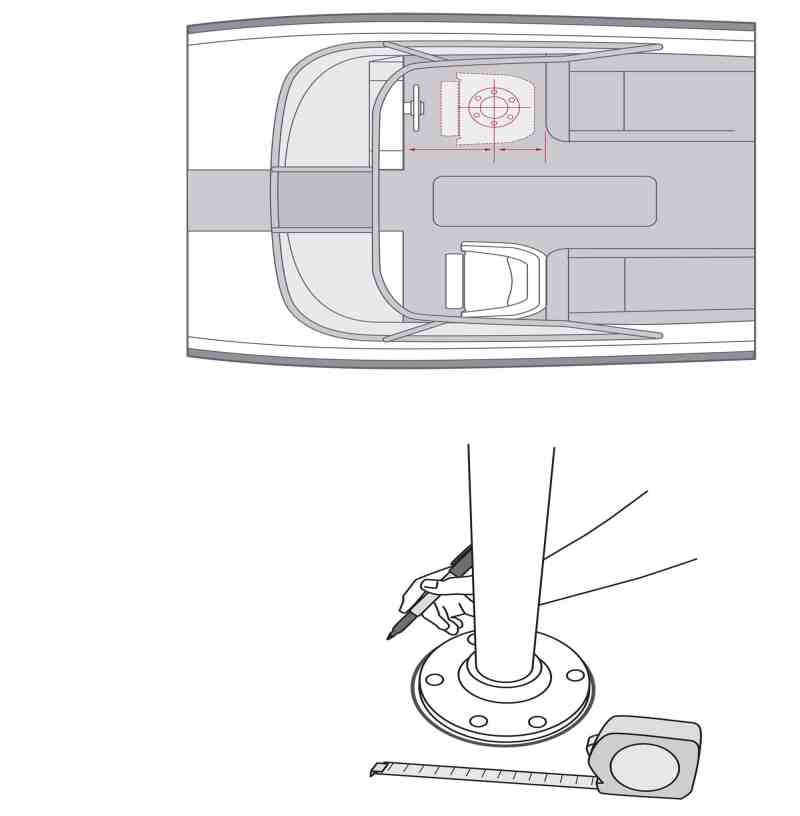

Choose the right base location
Base Location Tim Barker

With the chair installed on the pedestal, place the entire assembly on the helm deck, in line with the steering wheel, and carefully take a seat. Adjust the base fore and aft until you find the position that lets you easily and comfortably pilot the boat. Check to ensure that there is sufficient space forward for the bolt-on footrest and that the seat has room to swivel and slide fore and aft. Once satisfied, mark the mounting holes for the base, using the base itself as a template.

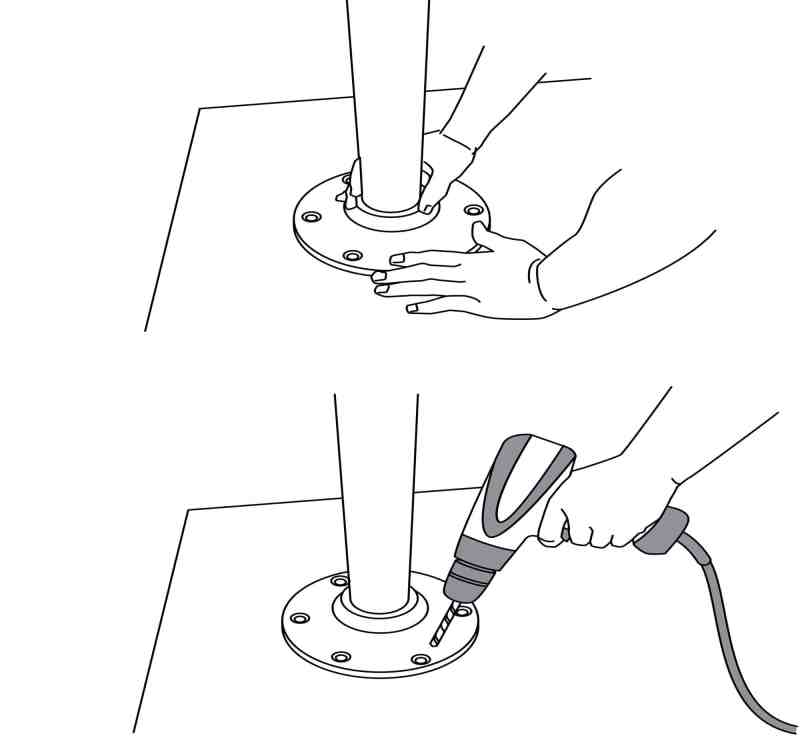

Installing the seat base
Install the Base Tim Barker

Check under the deck for interference before drilling. For a deck less than 3/4-inch thick, use a backing plate, which can be fashioned from a 3/8-inch-thick plate of aluminum, pre-drilled to the hole pattern on the base. Drill the six 1/4-inch mounting holes through the deck. Bed around the base and dab each hole with marine sealant. Secure the base with 1/4-20 oval-head bolts, washers and nyloc nuts (hardware not included). Tighten securely. Install the footrest.
